100GHz 3 Port Thin Film CWDM With Low Insertion Loss

Brand Name : Wuhan ETERN Optoelectronics

Model Number : TFF CWDM 3-port

Certification : RoHS & Telcordia GR-1221-CORE

Place of Origin : China

MOQ : 10PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50k per month

Packaging Details : Individual Package

Contact Now

100GHz 3-Port Thin-Film CWDM With Low Insertion Loss

3-port Mini CWDM devices are used in passive optical WDM module;They can multiplexer demultiplex different optical signal wave length division multiplexing system, and increase the signal transmission speed and communication capacity.

Feature

▪ Low insertion loss, low PDL

▪ High isolation

▪ Wide operating wavelength

▪ Wide operating temperature

▪ High reliability and stability

▪ Small package size,compact structure,and space saving

Application

▪ WDM system

▪ PON networks

▪ CATV links

Specification



　

Parameter

　

Units

Value



Operating wavelength



nm

1260~1670nm









1540~1560



Transmission band



nm

1524~1544&1596~1625









customer specified







1260~1360&1480~1500



Reflection band



nm

1260~1500&1550~1581&1640~1670









customer specified



Transmission band insertion loss



dB

≤0.6



Reflection band insertion loss



dB

≤0.4



Transmission Isolation



dB

≥30



Reflection Isolation



dB

≥15



Return loss



dB

≥50



Directivity



dB

≥50



Operating Temperature



℃

-40 to +85

Note: Measured with connectors； IL will be 0.3dB worse and RL will be 5dB lower with connectors.

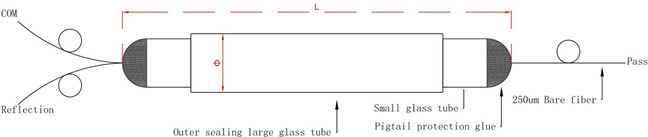

Mechanical Dimensions (Unit: mm)

100GHz 3 Port Thin Film CWDM With Low Insertion Loss





Ordering Information



FWDM -

□

□□-

□

□□

□

　

　

　

　

　

　

　

Spacing

Channel

Fiber Type

Fiber Length

Connector

FWDM

1=100GHz

C21=C21

1=250um SM

00=Adapter

1=None

2=200GHz

C22=C22

2=900um SM

05=0.5m

2=FC/UPC

C=CWDM

21=1221

3=2.0mm SM

10=1.0m

3=FC/APC

X=Special

31=1331

4=3.0mm SM

15=1.5m

4=LC/UPC

　

......

　

20=2.0m

5=LC/APC

　

　

......

6=SC/UPC

　

　

7=SC/APC

　

　

X=Special

　

　

　
