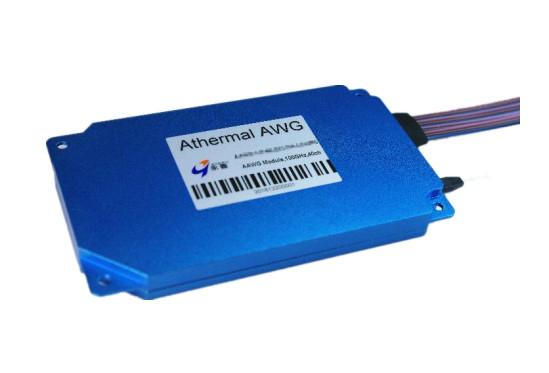

50GHZ SPACING FLAT-TOP AAWG C-T MULTIPLEXER / DEMULTIPLEXER
Description:
50GHZ 80 Channels AWG Multiplexer 5.5dB Fiber Mux Equipment
ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 50GHz channel spacing in the C and L band ITU grid, without any electrical power needed.
Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
Features:
1. Athermal Design Over Operating Temperature Range
2. Compact Size
3. High Stability and Reliability
4. Low Insertion Loss, High Isolation
Applications:
1. WDM Transmission
2. Metro and Long-haul Network
Performance Specification:
| Parameter | Units | Value |
| Channels | | 80, 88, 96 or customized |
| Channel Spacing | GHz | 50 |
| Reference Passband | GHz | ±6.25 |
| Wavelength Accuracy | pm | ±50 |
| Insertion Loss1 | Typ. | dB | 5.5 |
| Max. | 6.0 |
| Insertion Loss Uniformity | dB | ≤1.5 |
| Polarization Dependent Loss (PDL) | dB | ≤0.5 |
| 1dB Bandwidth | nm | ≥0.4 |
| 3dB Bandwidth | nm | ≥0.6 |
| Adjacent Channel Isolation | dB | ≥25 |
| Non-Adjacent Channel Isolation | dB | ≥30 |
| Total Crosstalk | dB | ≥22 |
| Return Loss | dB | ≥40 |
| Chromatic Dispersion(CD) | ps/nm | -20 ~ +20 |
| Polarization Mode Dispersion(PMD) | ps | ≤0.5 |
| Operating Temperature | ℃ | -5 to +65 |
| Storage Temperature | ℃ | -40 to +85 |
Note: 1. Tested with connectors.
Mechanical Dimensions (Unit: mm)
Ordering Information:
| Athermal AWG | Spacing | Type | Ch Number | Started Ch | Fiber Length | Connector | Application | Package |
| Common | Ribbon | Fan-out |
| AAWG | 5=50GHz | F=Flat-Top | 80=80ch | C21=C21 | 00=Adaptor | 1=None | M=Mux | M=Module |
| | | 88=88ch | C215=C21.5 | 05=0.5m 05=0.5m 05=0.5m | 2=FC/UPC | D=Demux | R=Rack |
| | | 96=96ch | …… | 10=1.0m 10=1.0m 10=1.0m | 3=FC/APC | MD=Mux & Demux |
| | | | | 15=1.5m 15=1.5m 15=1.5m | 4=LC/UPC | | |
| | | | | 20=2.0m 20=2.0m 20=2.0m | 5=LC/APC | | |
| | | …… | | …… | 6=SC/UPC | | |
| | | | | | 7=SC/APC | | |
| | | | | | X=Special | | |
